| न्यूनतम आदेश मात्रा: | 1 इकाई |

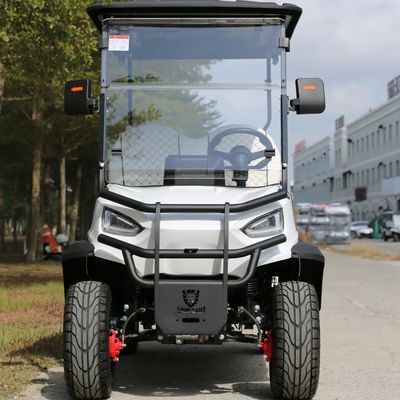

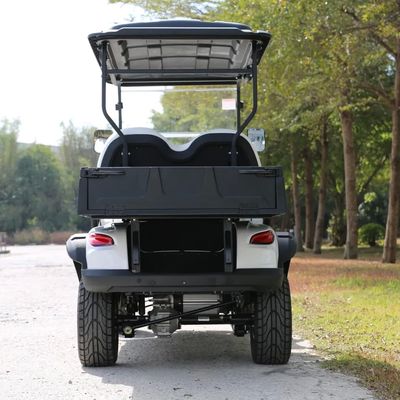

This 4-seater electric golf cart with cargo box combines functionality and comfort, perfect for golf courses, resorts, campuses, and various utility applications.
| HS CODE | 8703101900 |
|---|---|
| Qty/20'GP (Assembled) | 1 UNIT |
| Qty/40'HQ (Assembled) | 3 UNITS |
| Qty/20'GP (Disassembled) | 3 UNITS |
| Qty/40'HQ (Disassembled) | 10 UNITS |
| Passenger capacity | 4 seats + cargo space |
| Max. Speed | 25MPH |
|---|---|
| Range (loaded) | 80km (level road) |
| Climbing Ability | 25% |
| Braking Distance | <3.5m |
| Min. Turning Radius | 3.2m |
| Min. Clearance | 170mm |
| Recharge time | 8~10h |
| L×W×H | 3500*1350*2080mm |
|---|---|
| F/R Tread | 1005mm/1075mm |
| Axle Distance | 2436 mm |
| Curb Weight | 600kg |
| Max. loading | 794 lbs (360kg) |
| Motor | 48V 4.0KW AC |
|---|---|
| Controller | 48V 350A AC |
| Battery | Maintenance-free battery 8V /150Ah*6PCS |
| Body & Roof | Injection molded PP materials for UV protection + black square pipe frame + PP material roof |
| Windshield | Foldable windshield |
| Seats | Sponge + artificial leather |
| Rear view mirror | 2 side mirrors with LED indicator lights |
| Tire and wheel | 22*9.5-12 Tires + 12inch aluminum alloy wheels |
| Chassis | Q235 high-strength sheet metal profile welding, electrophoresis + anti-rust spraying |
| Suspension | Front: MacPherson independent suspension Rear: Trailing rear suspension for off-road vehicles |
| Lighting system | 2 headlights, 2 running lights, 2 front turn signals, 2 rear lights, 2 rear turn signals |
| Rear axle | Speed ratio 12.31:1 High efficiency gear drive, Maintenance free |
| Sound system | Speaker |
| Brake system | Front wheel disc brake, rear wheel drum brake + foot parking |
| Steering system | Double gear rack steering system with automatic clearance compensation |
| Charger | On board charger, High frequency with temperature protection: Output:48V / 25A, Input AC 220V/50HZ~60HZ |
| Dashboard | Injection molding instrument panel with ignition switch, direction selection, high beam switch, horn headlight combination switch, water cup holder; USB + Type-c charging / double USB charging |
| Combination instrument | Large screen waterproof advanced multimedia combination LCD screen with vehicle status information |
| Seat belt | Two-point seat belt |
| Roof color | Black |
| Optional colors | White, Metallic silver, Metallic black, Blue, Bright cherry-red, Green, Red |
All golf carts sold by us are quality guaranteed. We provide 1 year warranty for main parts.
Normally 30 working days.
T/T 30% deposit and balance paid before shipment.
Yes, we provide maintenance parts for our electric vehicles.
Minimum order quantity is 1 unit.
Yes, custom logos are available.
We welcome all inquiries and look forward to establishing long-term business relationships.
